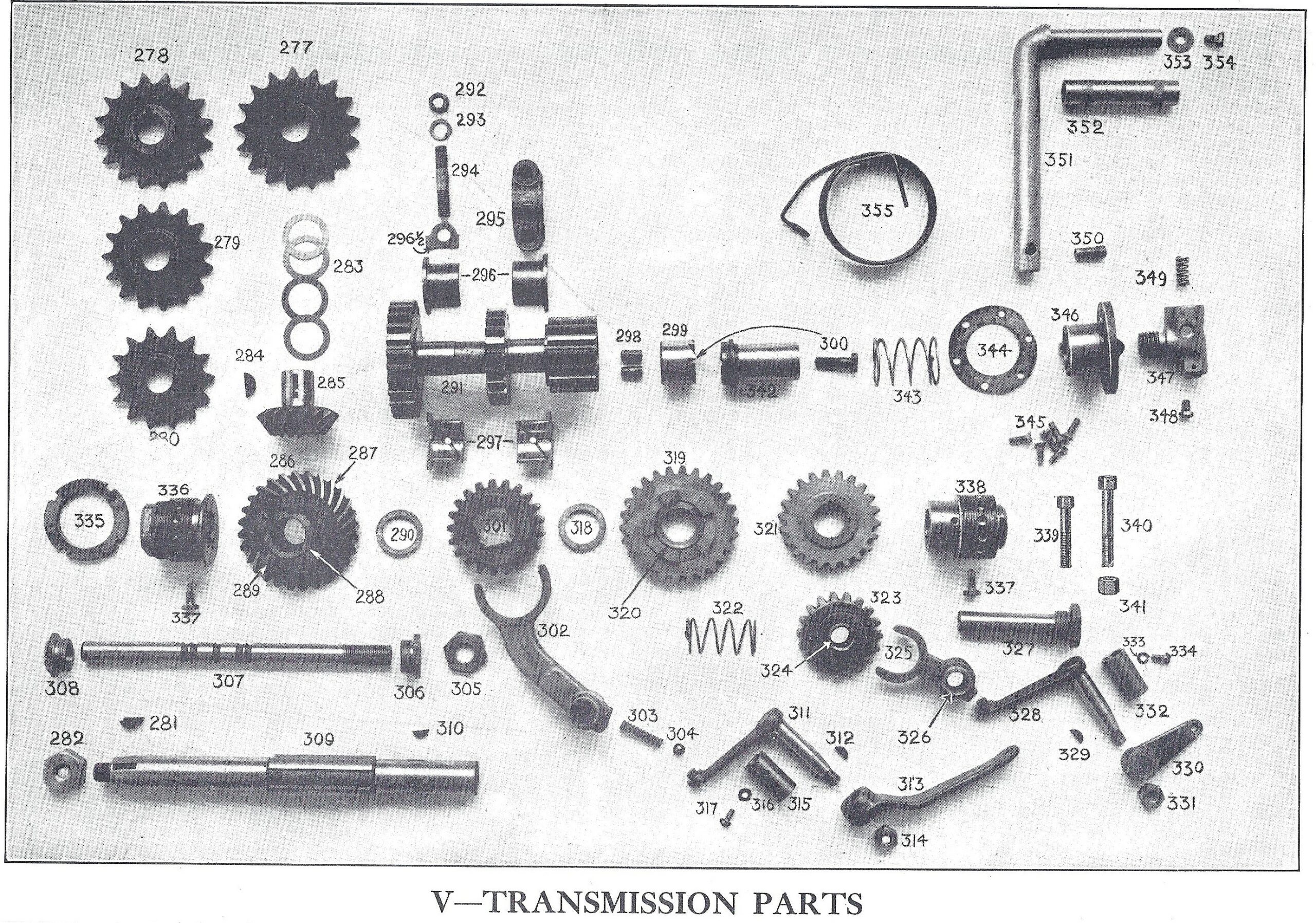

Transmission Parts

	Photo No.	Part No.	No. Used	Name	Price	Cond.
296 ½	K-1043	4	Countershaft Bearing Shim, Brass	$8.00	NEW	Add to cart
296	G-6341		Countershaft Bearing, Lower	$25.00	USED	Add to cart
296	G-6341		Countershaft Bearing, Lower (New Babbitt)	$35.00	USED	Read more
297	G-6340	2	Countershaft Bearing, Upper	$25.00	USED	Add to cart
297	G-6340	2	Countershaft Bearing, Upper (New Babbitt)	$35.00	USED	Add to cart
295	K-1042		Countershaft Gear Bearing Cap	$25.00	USED	Add to cart
292	208-N		Countershaft Gear Bearing Stud Nut	$3.00	NEW	Add to cart
293	304-W		Countershaft Gear Bearing Stud Nut Lockwasher	$1.00	NEW	Add to cart
	XK-2347		Engine Sprocket Key for Four Keyways	$1.00	NEW	Add to cart
281	K-3069		Engine Sprocket Key for One Keyway	$1.00	NEW	Add to cart
282	K-3051		Engine Sprocket Locknut	$20.00	NEW	Read more
	K-3061	1	Engine Sprocket, 14 Tooth, Four Keyways	$75.00	NOS	Add to cart
280	K-3065		Engine Sprocket, 14 Tooth, One Keyway	$75.00	NEW	Add to cart
279	K-3066		Engine Sprocket, 15 Tooth, One Keyway	$75.00	NEW	Add to cart
278	K-3067		Engine Sprocket, 16 Tooth, One Keyway	$75.00	NEW	Add to cart
277	K-3068		Engine Sprocket, 17 Tooth, One Keyway	$75.00	NEW	Add to cart
352	G-6148	1	Foot Starter Crank Sleeve	$32.00	NEW	Add to cart
344	K-3805	1	Foot Starter Housing Gasket	$5.00	NEW	Add to cart
	K-3803-kit	1	Foot Starter Housing Screw Kit, Set of 6, Nickle Plated	$12.00	NEW	Read more
345	K-3807		Foot Starter Housing Screws, Nickle Plated	$1.00	NEW	Add to cart
298	K-3401	2	Foot Starter Jaw Pin	$5.00	NEW	Add to cart
	K-3411TL	1	Foot Starter Jaw Removal Tool	$15.00	NEW	Add to cart
299	K-3411		Foot Starter Jaw, New Style	$35.00	USED	Add to cart
	K-3410		Foot Starter Jaw, Old Style	$35.00	USED	Add to cart
300	K-3415		Foot Starter Jaw, Screw 5/16″x 24″	$3.00	NEW	Add to cart
355	K-3835	1	Foot Starter Return Spring	$50.00	NEW	Add to cart
348	G-6150	1	Foot Starter Return Spring Set Screw	$10.00	NOS	Add to cart
299	K-3802/3411	1	Foot Starter Shaft & Jaw Set, New Style	$225.00	NEW	Read more
342	K-3802/3411	1	Foot Starter Shaft & Jaw Set, New Style	$225.00	NEW	Read more
346	K-3803	1	Foot Starter Shaft Housing	$75.00	USED	Read more
343	K-3801	1	Foot Starter Shaft Spring	$65.00	NEW	Read more
342	K-3802	1	Foot Starter Shaft, New Style	$35.00	USED	Add to cart
	K-3800	1	Foot Starter Shaft, Old Style	$35.00	USED	Add to cart
354	G-6150	1	Foot Starter Sleeve Screw	$10.00	NOS	Add to cart
353	G-6149	1	Foot Starter Sleeve Washer	$3.00	NEW	Read more
350	K-3844	1	Foot Starter Socket Stop Pin	$20.00	NEW	Read more
316	301-W		Gear Shifter Finger Bushing Lockwasher	$0.5	NEW	Add to cart
317	XK-1512	1	Gear Shifter Finger Bushing Screw	$1.00	NEW	Add to cart
312	XK-2373		Gear Shifter Finger Key	$1.00	NEW	Add to cart
314	K-3109		Gear Shifter Finger Nut	$10.00		Read more
303	K-3612	1	Gear Shifter Fork Locking Spring	$8.00	NOS	Add to cart
304	XK-1718	1	Gear Shifter Fork Locking Spring Ball	$0.5	NEW	Add to cart
	K-3607		Gear Shifter Fork, Old Style	$100.00	USED	Add to cart
306	K-3604		Gear Shifter Shaft Adapter	$15.00	NOS	Add to cart
308	K-3602	1	Gear Shifter Shaft Cap Nut	$25.00	NOS	Add to cart
	K-3600	1	Gear Shifter Shaft, Old Style	$50.00	NOS	Add to cart
	204-N	1	Gear Shifter Stop Pin Locknut, Old Style	$3.00	NEW	Add to cart
	G-6358		Gear Shifter Stop Pin, Old Style	$30.00	USED	Add to cart
286	K-333		Large Bevel Gear, Spiral Cut and Driving Gear Assembly	$100.00	USED	Add to cart
	K-333-A		Large Bevel Gear, Straight Cut and Driving Gear Assembly	$1070.00	USED	Add to cart
319	K-337		Low Speed Gear, Complete, 25 Teeth, Supersedes K-336	$50.00	USED	Add to cart
	K-336		Low Speed Gear, Complete, Old Style, 24 Teeth	$50.00	USED	Add to cart
289	K-3333		Main Driving Gear, Only	$50.00	USED	Add to cart
310	XK-2373		Reverse Driving Gear Key	$1.00	NEW	Add to cart
333	301-W		Reverse Gear Shifter Finger Bushing Lockwasher	$0.5	NEW	Add to cart
329	XK-2373		Reverse Gear Shifter Finger Key	$1.00	NEW	Add to cart
334	XK-1512	1	Reverse Gear Shifter Finger Lock Screw	$1.00		Add to cart
331	K-3109		Reverse Gear Shifter Finger Nut	$10.00		Read more
	K-3998	1	Reverse Gear Shifter Shaft Plug	$15.00	USED	Add to cart
	K-3998	1	Reverse Gear Shifter Shaft Plug	$25.00	NEW	Read more
284	408-Key		Small Bevel Gear Key	$1.00	NEW	Add to cart
283	K-3504		Small Bevel Gear Shim	$0.00		Read more
341	207-N		Spline Shaft Bearing Bolt Nut		NEW	Select options This product has multiple variants. The options may be chosen on the product page
340	K-1032		Spline Shaft Bearing Bolt, Long, 3/8″x24	$6.00	NEW	Add to cart
	K-1032-kit	1	Spline Shaft Bearing Bolt, Nut & Lockwasher Kit, Nickle Plated	$33.00	NEW	Add to cart
339	K-1033		Spline Shaft Bearing Bolt, Short, 3/8″x16	$6.00	NEW	Add to cart
337	K-1030		Spline Shaft Bearing Set Screw, Right or Left Side	$10.00		Read more
	K-3329	1	Spline Shaft Bearing, Right, Felt Washer	$5.00	NEW	Add to cart
290	K-3001	2	Spline Shaft Collar	$10.00	USED	Add to cart
318	K-3001	2	Spline Shaft Collar	$10.00	USED	Add to cart
	K-3000		Spline Shaft, Old Style with Four Key ways	$50.00	USED	Add to cart
309	K-3005		Spline Shaft, with One Keyway	$50.00	USED	Add to cart
