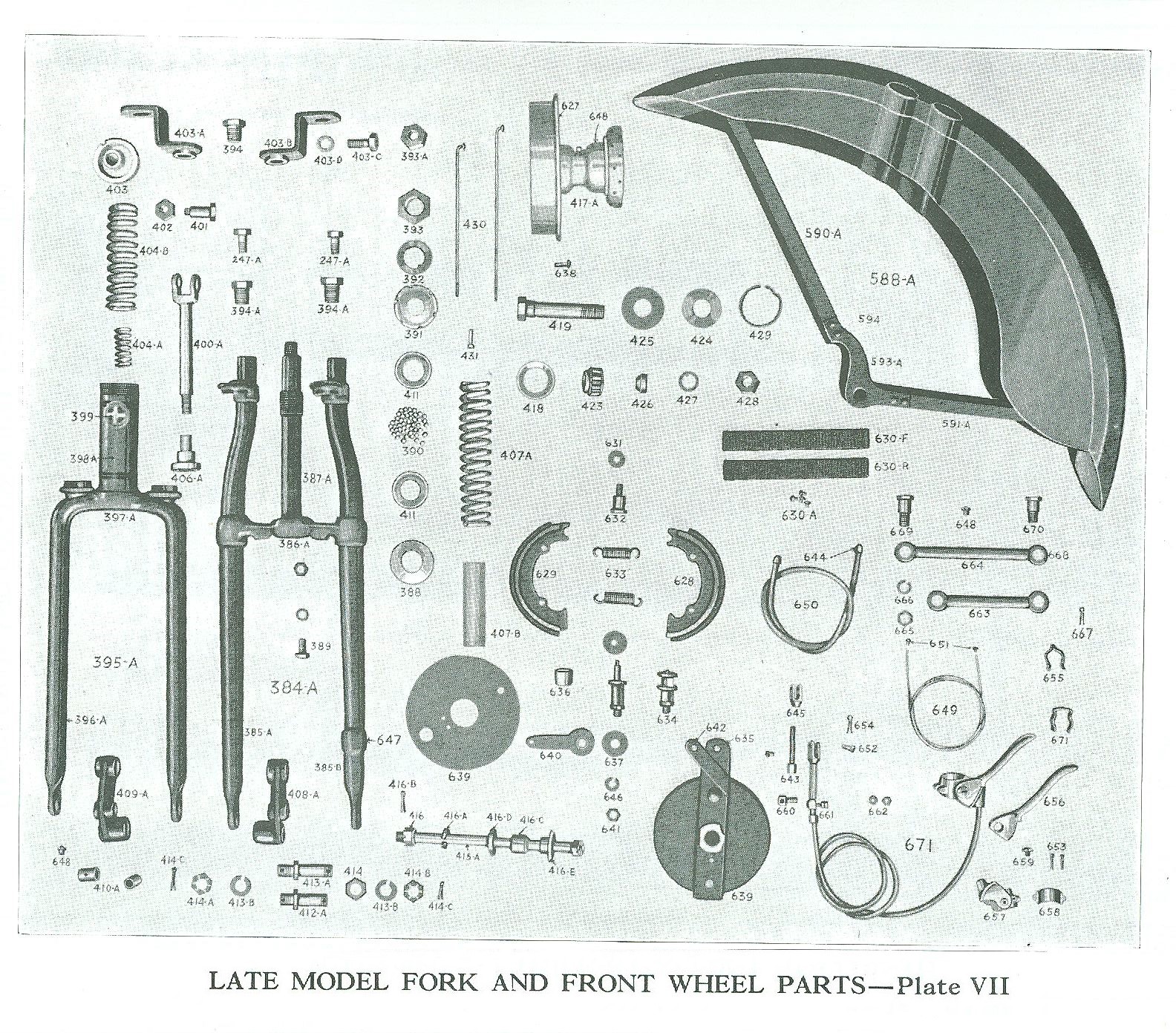

Front Fork, Wheel & Brake Parts-Late

	Photo No.	Part No.	No. Used	Name	Price	Cond.
643	K-6543	1	Brake Adjusting Screw	$30.00		Read more
634	K-770	1	Brake Cam Assembly	$75.00	NEW	Add to cart
636	K-6533	1	Brake Cam Bushing	$15.00	NEW	Add to cart

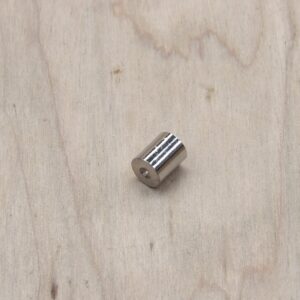

644	K-6546	1	Brake Casing Ferrule	$5.00	NEW	Read more
639	K-6527	1	Brake Cover	$25.00	NEW	Add to cart
638	Ex-2127	6	Brake Drum Rivets	$2.00	NEW	Add to cart
640	K-6536	1	Brake Lever	$25.00	NEW	Add to cart
641	Ex-3636	1	Brake Lever Nut	$3.00	NEW	Add to cart

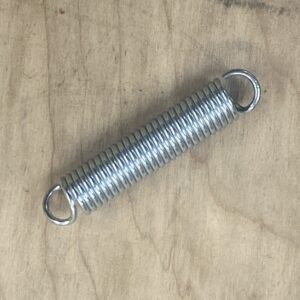

633	K-6565	2	Brake Shoe Return Spring	$10.00	NEW	Add to cart

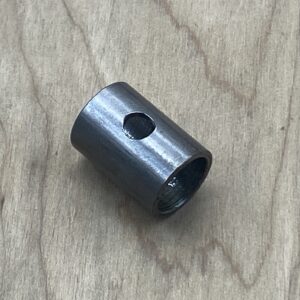

410-A	K-6723	4	Fork Rocker Bushing (New Style)	$10.00	NEW	Read more
408A	K-6722	1	Fork Rocker Only — Left (New Style)	$100.00	NEW	Read more
409A	K-6721	1	Fork Rocker Only — Right (New Style)	$100.00	NEW	Add to cart
414C	K-1603	8	Fork Rocker Stud Nut Cotter Pin	$0.5	NEW	Add to cart
414B	P4-9376	8	Fork Rocker Stud Nut, 7/16” Castellated	$5.00	NEW	Add to cart
408A	K-760	1	Fork Rocker with Bushing & Alemite, Left	$135.00	NEW	Read more
409A	K-759	1	Fork Rocker with Bushing & Alemite, Right	$135.00	NEW	Read more
403D	306-W	2	Fork Spring Support Screws Washer	$5.00	NEW	Add to cart
427	K-8006	2	Front and Rear Hub Adj. Lockwasher	$10.00	NOS	Add to cart
424	K-8009	8	Front and Rear Hub Dust Washer	$5.00	NEW	Add to cart
425	K-8008	4	Front and Rear Hub Felt Washer	$5.00	NEW	Add to cart
429	K-8010	4	Front and Rear Snap Rings	$5.00	NEW	Add to cart
416E	K-6539	1	Front Axle Bearing	$35.00	NEW	Read more
416D	K-6540	1	Front Axle Bearing Washer	$10.00	NOS	Read more
416E	K-6539os	1	Front Axle Brake Bearing, .015 Oversize	$35.00	NEW	Read more
416B	EX-1603	2	Front Axle Cotterpin	$0.5	NEW	Add to cart
416A	K-6710	4	Front Axle Lockwasher	$1.00	NEW	Add to cart
416	P4-9393	2	Front Axle Nut	$5.00		Read more
415A	K-6537	1	Front Axle Only, Later Type	$35.00	NEW	Add to cart
419	K-743	1	Front Axle Quill with Spacer	$100.00	NEW	Read more
416C	K-6538	1	Front Axle Spacer	$30.00	NOS	Add to cart
661	Ex-3757	1	Front Brake Adjusting Clevis Locknut	$3.00		Read more
648	K-6551	7	Front Brake and Fork Alemite Fittings	$6.00	NEW	Add to cart
646	Ex-3739	2	Front Brake Arm Spring Washer	$1.00	NEW	Add to cart
653	Ex-3762	2	Front Brake Cable Clamp Screw	$0.00		Read more
654	EX-3607	1	Front Brake Cable Clevis Cotter Pin	$0.5	NEW	Add to cart
652	Ex-3760	1	Front Brake Cable Clevis Pin	$5.00	NOS	Add to cart
627	K-6550	1	Front Brake Drum	$250.00	NEW	Add to cart
655	P4-9914	2	Front Brake Frame Tube Wire Clip	$12.00	NEW	Add to cart
656	EX-3724	1	Front Brake Hand Lever	$150.00	NEW	Read more
658	EX-3726	1	Front Brake Hand Lever Clamp	$0.00	NEW	Read more
659	K-6554	2	Front Brake Hand Lever Clamp Screw	$20.00	NOS	Add to cart
667	Ex-2607	2	Front Brake Stabilizer Bolt Cotter Pin	$0.5	NEW	Add to cart
665	208-N	2	Front Brake Stabilizer Bolt Nut	$3.00	NEW	Add to cart
666	Ex-1268	2	Front Brake Stabilizer Bolt Nut Lockwasher	$1.00	NEW	Add to cart
669	K-6523	1	Front Brake Stabilizer Bolt, Long	$35.00	NOS	Add to cart
670	K-6524	1	Front Brake Stabilizer Bolt, Short	$35.00	NOS	Add to cart
668	K-6522	2	Front Brake Stabilizer Bushing	$10.00	NOS	Add to cart
660	K-6541	1	Front Brake Swivel Post	$20.00		Read more
662	Ex-1305	1	Front Brake Swivel Post Nut	$3.00		Read more
426	K-8013	1	Front Hub Adj. Nut, (RH Thread)	$25.00	NOS	Add to cart
428	K-8014	1	Front Hub Locknut (RH Thread)	$20.00	NOS	Add to cart
	K-743-kit	1	Front Hub Quill with nuts and washer	$150.00	NEW	Read more
417A	K- 749	1	Front Hub Shell and Brake Drum Only			Read more
389	H-6484	2	Front Mudguard Bolt	$10.00	NEW	Add to cart
	303-W	2	Front Mudguard Bolt Lockwasher	$1.00	NEW	Add to cart
	204-N	2	Front Mudguard Bolt Nut	$3.00	NEW	Add to cart
	H-6484kit	1	Front Mudguard Bolt, Lockwasher, and Nut Kit	$28.00	NEW	Add to cart
430	P4-9906-kit	1	Front Spoke and Nipple set, 18” Clincher Rim, Bare Steel	$180.00	NEW	Read more
430	KJ-7511	1	Front Spoke and Nipple set, 18” Drop Center, Bare Steel	$180.00	NEW	Add to cart
	K-767	1	Front Wheel Brake Arm Assembly 1928-30	$250.00	NEW	Read more
	K-767L	1	Front Wheel Brake Arm Assembly 1931	$250.00	NEW	Read more
	K-769	1	Front Wheel Brake Arm Plate Assembly, Complete	$535.00	NEW	Read more
	K-769L	1	Front Wheel Brake Arm Plate Assembly, Complete 1931	$535.00	NEW	Read more
	K-6536L	1	Front Wheel Brake Operating Lever (Long) 1931	$30.00	NEW	Add to cart

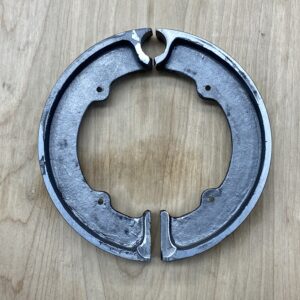

	K-6555	1	Front Wheel Brake Shoe set, Unlined	$200.00	NEW	Add to cart
628	K-766	1	Front Wheel Brake Shoes w/ Linings, Set	$300.00	NEW	Read more
651	K-6548	2	Hand Brake Operating Cable Button	$5.00	NEW	Add to cart

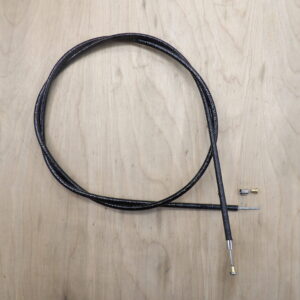

650	KJ-6545-Kit	1	Hand Brake Operating Cable, Complete	$70.00	NEW	Add to cart
394A	P4-9091	2	Handlebar Cap Screw (Later Type)	$5.00		Add to cart
402	A-2041	1	Handlebar King Bolt Nut	$10.00	NEW	Add to cart
393	SKJ-2048	1	Head Cone Lock Nut	$10.00	USED	Add to cart
391	SKJ-2565	1	Head Cone, Upper	$75.00	NOS	Add to cart
392	SKJ-2007	1	Head Lock Washer	$15.00	NOS	Add to cart
414	226-L	4	Inside Rocker Nut	$5.00	NEW	Add to cart
413B	306-W	8	Lock washers	$5.00	NEW	Add to cart
630A	K-3848	16	Long Brake Lining Rivets	$1.00	NEW	Add to cart
393B	K-6005	1	Main Fork Stem Nut (Later Type)	$35.00	NOS	Add to cart
414A	K-1601	8	Outside Rocker Nut, 1/2” Castellated – Later Type	$15.00		Read more
399	K-5199	1	Schwinn-Made Transfer	$30.00	NEW	Add to cart
403	G-2008	1	Spring Fork Barrel Cap	$100.00	NEW	Read more
406-A	K-6604	1	Spring Fork Clevis Extension, Long	$25.00	NEW	Add to cart
406-A	K-6604	1	Spring Fork Clevis Extension, Medium	$25.00	NOS	Add to cart
406-A	K-6604	1	Spring Fork Clevis Extension, Short	$25.00	NEW	Add to cart
406A	P4-9338	1	Spring Fork Clevis Nut			Read more
390	SKJ-2037	40	Steel Balls 1/4”	$0.5		Add to cart
423	K-8021	4	Timken Roller Bearing Cone Retainer and Rollers	$35.00	NEW	Add to cart
418	K-8020	4	Timken Roller Bearing Cup	$20.00	NEW	Add to cart
